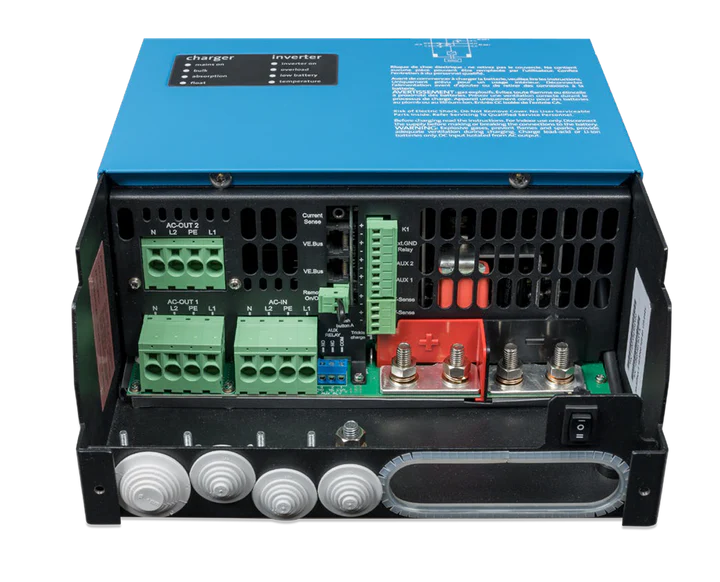

Victron Energy MultiPlus 12/3000/120-50 Inverter/Charger

Victron Energy MultiPlus 12/3000/120-50 Inverter/Charger

The Victron Energy MultiPlus 12/3000/120-50 VE.Bus Inverter/Charger combines a powerful true sine wave inverter, an advanced battery charger with adaptive charging technology, and a high-speed AC transfer switch in a single compact unit. This sophisticated system ensures seamless operation and intelligent power management, making it ideal for off-grid and backup power solutions.

When shore or generator power is disconnected, or in the event of a grid failure, the MultiPlus inverter automatically activates within 20 milliseconds, ensuring uninterrupted power supply to sensitive electronics like computers and other critical devices.

Key Features

1. Multifunctional Power Management

• Two AC Outputs:
  • The primary output offers no-break functionality, ensuring uninterrupted power for sensitive electronics with less than a 20-millisecond delay.
  • The secondary output is active only when AC power is available, preventing battery discharge by loads like water heaters.

2. Parallel and Three-Phase Operation

• Operate up to 6 MultiPlus units in parallel, achieving up to 15kW/18kVA output power with a charging capacity of 420 amps.
• Support for three-phase power supply with a minimum of three units.

3. PowerControl

• Manage limited generator, shore, or grid power effectively.
• Set a maximum generator or shore current to prioritize connected loads, reserving only excess power for battery charging.

4. PowerAssist

• Boost the capacity of limited shore or generator power by seamlessly supplementing it with power from the battery for short-term peak demands.

5. Adaptive Battery Charging

• Advanced four-stage charging system: Bulk, Absorption, Float, and Storage modes tailored to the battery’s condition for optimal performance and longevity.
• Dual bank charging capability for added flexibility.

6. Easy Installation and Configuration

• Plug-and-play setup ensures quick installation.
• Configuration adjustments can be made in minutes using DIP switches.

Technical Specifications

• Input Voltage (AC): 120V
• Output Voltage (AC): 120V
• Output Power: 3000W
• Charge Current: 120A
• DC System Voltage: 12V
• Dimensions: 14.3" (H) x 10.2" (W) x 8.6" (D)
• Brand: Victron Energy

Applications

• Off-Grid Power Systems
• Backup Power Solutions
• RVs, Boats, and Remote Cabins

Attachments

• Datasheet (EN): [Download Now]
• Datasheet (FR): [Download Now]
• User Manual: [Download Now]

The Victron Energy MultiPlus 12/3000/120-50 is a versatile, reliable solution for managing power in demanding applications, providing seamless performance and advanced features to meet your energy needs.
